Electrical specifications

Frequency range (MHz)

2400-2500

Polarization

±45°+1×Vertical

Gain(dBi)

8±0.5

Half-power beam width(°)

Hor:65±5  Ver:65±5

Front-to-back ratio(dB)

≥22

Isolation(dB)

≥28

Impedance(Ω)

50

VSWR

≤1.5

Maximum input power(W)

100

Lightning protection

DC Ground

Mechanical specifications

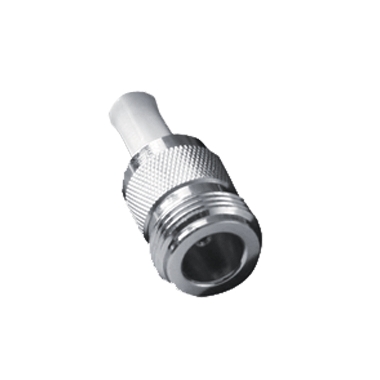

Connector

3×N-Female

Connector position

Bottom

Size(mm)

200×120×30

Packing size(mm)

220×130×50

Antenna weight(kg)

0.56

Packing weight(kg)

0.6

Wind loading area(㎡)

≤0.2

Rated wind velocity(m/s)

36.9

Reflector material

Aluminum

Radome material

ABS

Radome color

White

Operating temperature(℃)

-40～55

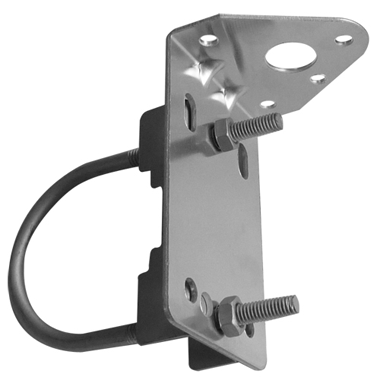

Mounting hardware(mm)

φ40～φ50

Mechanical tilt(°)

±10
