LKG1GA048A
Publish time 2018-08-09 17:41

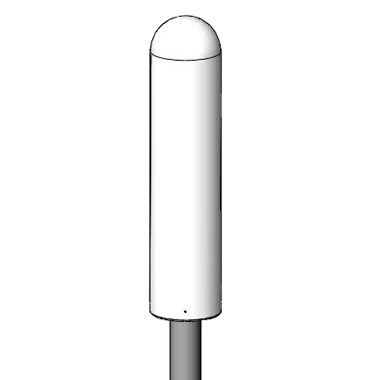

2.4GHz 5dBi MIMO WLAN Omni Directional Antenna
Frequency range:2400-2500MHz
Polarization:6×Vertical
Gain:5dBi
|
Electrical specifications
|
||
|
Frequency range (MHz)
|
2400-2500
|
|
|
Polarization
|
6×Vertical
|
|
|
Gain(dBi)
|
5±0.5
|
|
|
Half-power beam width(°)
|
Hor:360 Ver:45±5
|
|
|
Un-roundness(dB)
|
±2
|
|
|
Isolation(dB)
|
≥20
|
|
|
Impedance(Ω)
|
50
|
|
|
VSWR
|
≤1.5
|
|
|
Maximum input power(W)
|
100
|
|
|
Lightning protection
|
DC Ground
|
|
|
Mechanical specifications
|
|
|
Connector
|
6×N-Female
|
|
Connector position
|
Bottom
|
|
Size(mm)
|
φ160×400
|
|
Packing size(mm)
|
550×200×200
|
|
Antenna weight(kg)
|
3.65
|
|
Packing weight(kg)
|
4.2
|
|
Wind loading area(㎡)
|
≤0.2
|
|
Rated wind velocity(m/s)
|
36.9
|
|
Reflector material
|
Copper
|
|
Radome material
|
PVC
|
|
Radome color
|
White
|
|
Operating temperature(℃)
|
-40～55
|
|
Mounting hardware(mm)
|
φ50～φ80
|
