LKG1GA236A
Publish time 2018-08-09 17:37

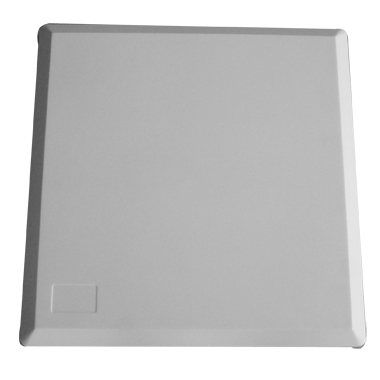

2.4GHz 18dBi Panel Antenna
Frequency range:2400-2500MHz
Polarization:±45°
Gain:18±1dBi
|
Electrical specifications
|
|
|
Frequency range (MHz)
|
2400-2500
|
|
Polarization
|
±45°
|
|
Gain(dBi)
|
18±1
|
|
Half-power beam width(°)
|
Hor:16±3 Ver:15±3
|
|
Front-to-back ratio(dB)
|
≥25
|
|
Isolation(dB)
|
≥27
|
|
Impedance(Ω)
|
50
|
|
VSWR
|
≤1.5
|
|
Maximum input power(W)
|
50
|
|
Lightning protection
|
DC Ground
|
|
Mechanical specifications
|
|
|
Connector
|
2×N-female
|
|
Connector position
|
Bottom
|
|
Size(mm)
|
400×400×40
|
|
Packing size(mm)
|
/
|
|
Antenna weight(kg)
|
1.8
|
|
Packing weight(kg)
|
/
|
|
Wind loading area(㎡)
|
≤0.2
|
|
Rated wind velocity(m/s)
|
36.9
|
|
Reflector material
|
Copper
|
|
Radome material
|
ABS
|
|
Radome color
|
White
|
|
Operating temperature(℃)
|
-40～55
|
|
Mounting hardware(mm)
|
φ40～φ50
|
|
Mechanical tilt(°)
|
±10
|
