Electrical specifications

Frequency range (MHz)

3400-3600

Polarization

Vertical

Gain(dBi)

18

Half-power beam width(°)

Hor:90  Ver:7

Front-to-back ratio(dB)

≥28

Impedance(Ω)

50

VSWR

≤1.4

Maximum input power(W)

200

Lightning protection

DC Ground

Mechanical specifications

Connector

N-female

Connector position

Bottom

size(mm)

800×130×55

Packing size(mm)

830×160×85

Antenna weight(kg)

1.8

Packing weight(kg)

2.6

Wind loading area(㎡)

≤0.2

Rated wind velocity(m/s)

60

Reflector material

Aluminium

Radome material

PVC

Radome color

White

Operating temperature(℃)

-40～70

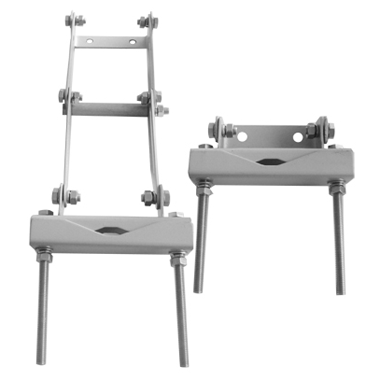

Mounting hardware(mm)

φ40～φ80

Mechanical tilt(°)

±10
