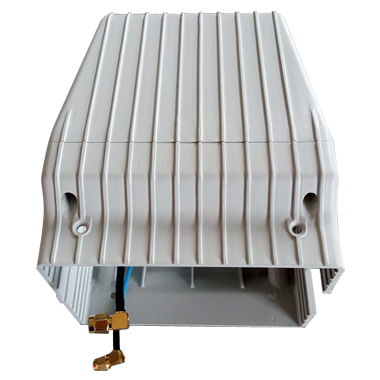

880-960/1710-2700|1710-2700MHz MIMO Omni Antenna
Frequency range:880-960/1710-2700|1710-2700MHz
Polarization:Vertical|Horizontal
Gain:≥2/≥3|≥3dBi
|
Electrical specifications |
|
|
|
Frequency range (MHz) |
880-960/1710-2700 |
1710-2700 |
|
Polarization |
Vertical |
Horizontal |
|
Gain (dBi) |
≥2/≥3 |
≥3 |
|
H-plane Roundness (dB) |
±3 |
±3 |
|
E-plane Half-power beam width（°） |
85/55 |
55 |
|
Isolation(dB) |
1710-2700 @ ≥25 |
|
|
Intermodulation IM3 |
IM5 @≤-95 IM7@≤-95 |
|
|
VSWR |
≤1.8 |
|
|
Average power tolerance (W) |
≥10 |
|
|
|
|
|
|
Mechanical specifications |
|
|
|
Connector |
2*SMA-JW |
|
|
Connector position |
Bottom |
|
|
Size (mm) |
133.5*125*162 |
|
|
Packing size (mm) |
/ |
|
|
Antenna weight (kg) |
/ |
|
|
Packing weight (kg) |
/ |
|
|
Atmospheric pressure |
70-106kPa |
|
|
Radome material |
PC+ABS |
|
|
Radome color |
RAL7035 |
|
|
Cable |
corrosion resistance, uv protection，similar with soft cable RD316D |
|
|
Cable length |
100mm |
|
|
IP Rating |
IP55 |
|
|
Storage temperature |
-40oC~+75oC |
|
|
Operating temperature |
-40oC~+75oC |
|
