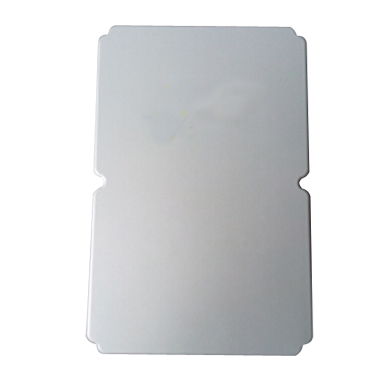

880-960/1710-2700MHz MIMO Directional Antenna
Frequency range:880-960/1710-2700MHz
Polarization:Vertical/±45°
Gain:≥6.5/≥8dBi
|
Electrical specifications |
|
|
|
Frequency range (MHz) |
880-960 |
1710-2700 |
|
Polarization |
Vertical |
±45° |
|
Gain (dBi) |
≥6.5 |
≥8 |
|
H half-power beam width (°) |
75±10 |
65±10 |
|
V half-power beam width (°) |
85 |
65 |
|
Front-to-back ratio (dB) |
≥11 |
≥14 |
|
Isolation (dB) |
1710-2700 @ ≥25 |
|
|
Intermodulation (dBm) |
IM5 @ ≤ -95 ； IM7 @ ≤ -95 |
|
|
VSWR |
≤1.8 |
|
|
Average power tolerance (W) |
≥10 |
|
|
Impedance (Ω) |
50Ω |
|
|
Mechanical specifications |
|
|
|
Connector |
SMA-JW3 |
|
|
Connector position |
|
|
|
Size (mm) |
318*190*47 |
|
|
Packing size (mm) |
|
|
|
Antenna weight (kg) |
|
|
|
Packing weight (kg) |
|
|
|
Atmospheric pressure ( kPa) |
70-106kPa |
|
|
Heat dissipation |
Natural |
|
|
Radome material |
PC + ABS |
|
|
Cable |
corrosion resistance, uv protection，similar with soft cable RD316D |
|
|
Cable length (mm) |
160mm /100mm |
|
|
IP Rating |
IP55 |
|
|
Radome color |
Gray (RAL7035) |
|
|
Storage temperature ((℃) |
-40oC~+75oC |
|
|
Operating temperature(℃) |
-40oC~+75oC |
|
