Electrical specifications

Frequency range (MHz)

3400-3600

Polarization

Vertical

Gain(dBi)

16

Half-power beam width(°)

Hor:60  Ver:12

Front-to-back ratio(dB)

≥24

Impedance(Ω)

50

VSWR

≤1.5

Maximum input power(W)

50

Lightning protection

DC Ground

Mechanical specifications

Connector

N-female

Connector position

Bottom

size(mm)

260×260×45

Packing size(mm)

270×270×105

Antenna weight(kg)

1.36

Packing weight(kg)

1.45

Wind loading area(㎡)

≤0.2

Rated wind velocity(m/s)

60

Reflector material

Aluminium

Radome material

ABS

Radome color

White

Operating temperature(℃)

-40～70

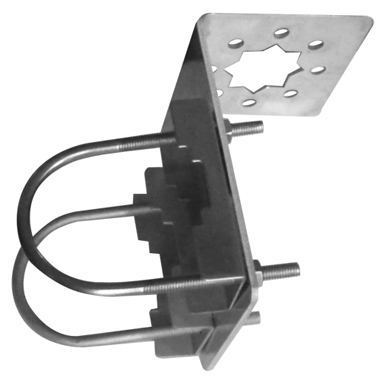

Mounting hardware(mm)

Ф40～50

Mechanical tilt(°)

±10
